Detail Information

Type:	Coating Production Line	Substrate:	Steel
Condition:	New, New	Machine Type:	Customzied, Painting Equipment, Pre-treatment Equipment, Coating Equipment
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty Of Core Components:	1 Year
Core Components:	PLC, Motor	Coating:	Powder Coating
Voltage:	380V/220V, 380V/220V	Power:	50W
Dimension(LWH):	Customized Size	Warranty:	1 Year
Key Selling Points:	Easy To Operate	Applicable Industries:	Manufacturing Plant
Showroom Location:	Australia	Weight (KG):	20000
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Name:	Automatic Powder Coating Line
Application:	Powder Coating	Dimension:	Customized
Power System:	Gas/diesel/LPG/ Electric	Powder Recovery Capacity:	98%
Evironmental:	Protective	Color:	Customized
Highlight:	Aluminium Profile Automatic Powder Coating Plant , Manual Overhead Conveyor Powder Coating Plant , Aluminium Profile Automatic Powder Coating Plant

Product Description

Aluminium Profile Automatic Powder Coating Plant

Product Description

This red automatic powder coating line was designed for the customer who supply the powder coating services to the others.

The working process for this line is, loading --- spray type pre-treatment --- water drying --- automatic powder coating --- automatic powder curing --- cooling --- unloading.

Automatic chain system: 2 sets driving system and 2 tensioning system. Chain can bearing 100kg/single point. Chain speed, 2.5m/min (you can adjust according your need). Total length for the chain, 295m

Pre-treatment system: Stainless steel spray type.

Steps are, pre-degreasing --- degreasing --- water washing 1 --- pure water washing 2 --- nano ceremic --- water washing 1 --- pure water washing 2

Automatic water drying oven: this oven only have the temperature for 120 Celsius.

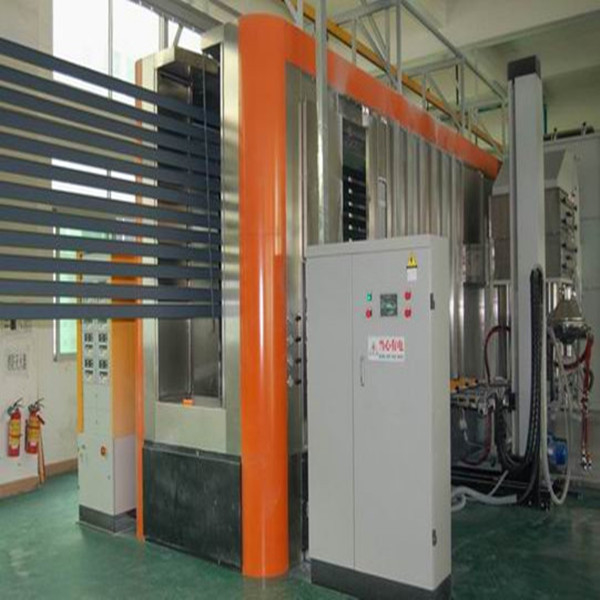

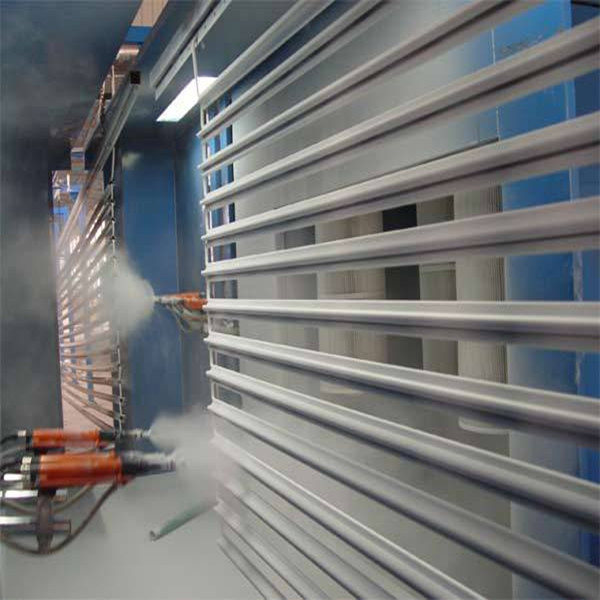

Automatic powder coating booth: the cyclone system will help you to recycle the 99.5% of the powder, and the material is PP type, it can allow you to change the color just in 15min. And the reciprocator and automatic gun will help you to do the automatic powder coating. There will be also 2 manual working station to making up the powder coating for some dead corner.

Automatic powder curing oven: powder curing oven have the temperature for 180~230 Celsius. The work piece can curing 20~30min just according your need.

Work Piece
Work piece name	Fridge, air conditioner, car parts and so on
Work piece max size	25008002000mm (LWH)
Front door size	24002440mm (WH)
Max weight per hanger	200kg/hanger
Pre-treatment System
Material for pre-treatment	Stainless steel SUS 304
Working process:	Pre-degreasing --- degreasing --- water washing 1 --- pure water washing 2 --- nano ceremic --- water washing 1 --- pure water washing 2
Water Drying Oven
Size	3000015506650mm ( LWH )
Material	100mm rock wool panel for the oven temperature 120 Celsius
Heating system	1 set natural gas burner, 430000kcal/h, with 1 set 7.5kw high temperature fan.
Powder Coating Booth
Size	700020003350mm (LWH)
Powder recycle system	One cyclone system, 1 set 30kw circulation fan, 24 pieces filter cartridge, 2 sets of automatic reciprocators, automatic gun, manul powder coating gun
Automatic Powder Oven
Size	3000048506650mm (LWH)
Material	150mm rock wool panel for the oven temperature 180~230 Celsius
Heating system	2 sets natural gas burner, 600000kcal/h for each, with 1 set 15kw high temperature fan.

Detailed Image

Our Advantages

1.We have more than 9 years' experience in manufacturing powder coating products, and we exported to more than 40 countries.

2. Like the picture below, we will do the pre-installation before you do the balance payment. In this way, it's more safe to you to
arrange the payment. And the pre-installation process can also help you know the installation steps of the equipment, you can do
the installation very easily when the equiplment arrive.
3.We have professional saling team and engingeers team to do very good after-sales service.
4.We have our own factory, we can make the customized design just according your real situation.
5.There are a lot of manual powder coating projects and automatic powder coating projects we did around our city, if you would
like to come for visiting, then we will show you our real projects to you.
6.As for the installation, if you don't want to do by yourself, even we already make the pre-installation. Then you can choose our
engineers to go to your city and guide your people to do the installation. If you don't want our engineer to go.

FAQ

Q1: Are you trading company or manufacturer ?

A1: We are factory and can do the exporting work by ourselves.

Q2: How long is your delivery time?

A2: About 50 workdays after received the deposit.

Q3: What is your terms of payment ?

A3: T/T and Irrevcoable L/C. 30% T/T in advance, 70% balance before shippment.

Q4: Can engineers service overseas?

A4: Yes, totally no problem.

Q5: What about the guarantee period?

A5:You will have 12 months guarantee time for the powder coating booth, if the parts broken as our mistake, we will send you by DHL.

But as we do the pre install before the laoding, so this situation won't very easy to happen we believe.

After one year, if you still have any help about the equipment, please feel free to contact us at any time, as we will supply you lifelong service.
