O-439 O-439 baking oven for electrostatic powder coating line and spray paint line
The heating power: Liquefied Petroleum Gas, Liquefied natural gas, Diesel, Electric, Coal.

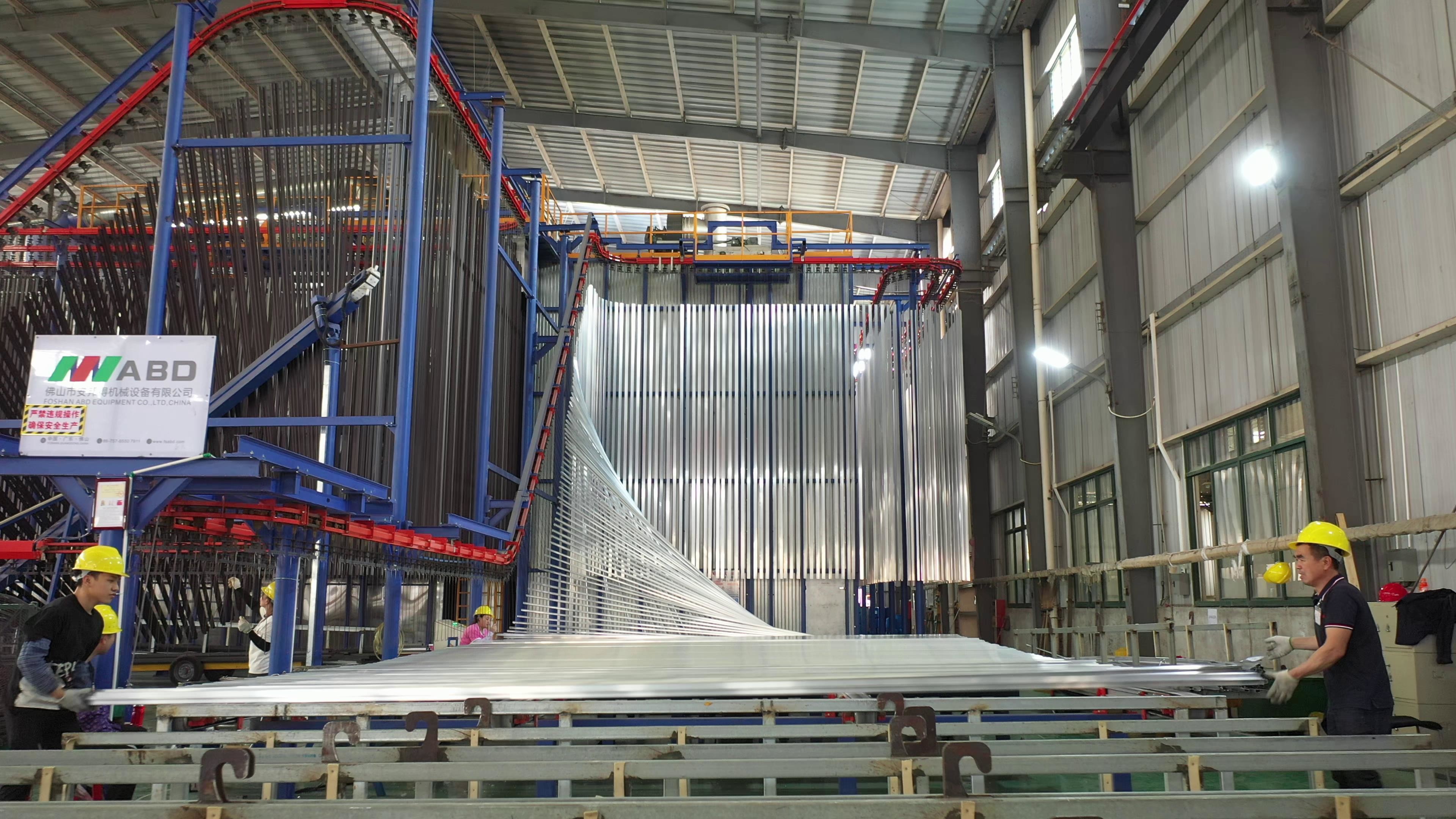

Picture show of tunnel curing oven
Exemplary examples of tunnel curing oven
|
No.
|
Item
|
Description
|
|
1
|
Demension
|
External size: 30000mm(L)×1700mm(W)×2700mm(H);or as requirement
Internal size: 29700mm(L)×1400mm(W)×2400mm(H)
|
|
2
|
Wall Panel
|
150mm thick heating-resisting rock wool steel board, sandwich:
Outside panel is 0.5mm thick colorful steel skin boards, and
Inside panel is 0.5mm thick galvanized sheet plate.
|
|
3
|
Entrance Door
|
W1400mm×H2400mm or as requirement;
Handiwork metal plate 2-door;
Be equipped doorknob, etc.
|
|
4
|
Overhead Rail
|
High quality steel rack;
|
|
5
|
Circulation Fan
|
2 unit 0.75kw high temperature fan. Air flow capacity: 9000m³/h;
Fan and burner box inner is 1.2mm thick stainless steel;
Out is also 150mm thick rock wool panel to keep heat.
|
|
6
|
Heating System
|
2 set of Riello FS34 natural gas(LPG,diesel) burner, 340000KCal/h
Max temp:220℃, heating time: 20-25min(180-220℃)
|
|
7
|
Motor Power
|
380V AC/3Ph/50Hz; or as requirement;
|
|
8
|
Electrical Control System
|
Baking, Indicator; Pre-set baking time;
Power On/Off Control, Indicator; Emergency Stop
|
|
9
|
Working Temp.
|
200℃
|
Customization of tunnel curing oven
For customized design upon your request , please kindly let us know the detailed info :
1. Workpieces Max weight and Max size (length ,width and high) and picture.
2. The material of the workpiece.
3. The heating power: Liquefied Petroleum Gas, Liquefied natural gas, Diesel, Electric, Coal or
Biomass particles.
4. The local electricity conditions(V/PHASE/HZ)
FAQ
1.Installation?
Deliver with detailed specification of installation and operation
2.Payment terms?
T/T,30% for deposit and the balance 70% before loading into container.
3.About design?
Please let me know the details,for example:the size of the workpieces,meterial description,
output capacity,the size of the workshop,change colors situation,electricity types and other
factors.
