Detail Information

Type:	Powder Coating Line	Substrate:	Steel, Steel, Rock Wool Heat-insulation
Condition:	New	Machine Type:	Batch Oven, Plc Controller Programmable Logic Controller, Conveying Equipment, Drying Oven, Curing Oven, Coating Equipment
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product 2021	Warranty Of Core Components:	1 Year
Core Components:	PLC, Motor	Coating:	Powder Coating
Voltage:	380V/220V	Power:	5.5Kw
Dimension(LWH):	6000x3000x2800mm	Warranty:	1 Year
Key Selling Points:	Easy To Operate	Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction Works
Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka,	Weight (KG):	6000
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Color:	Customized Color
Size:	As Required	Heating Energy:	LPG/Liquefied Natural Gas/Diesel/Electric/Coal
Heating System:	Riello Diesel Burner/gas Burner/electric Heating Tube	Equipment Name:	Industrial Batch Oven
Heating Time:	Normal 20mins	Heating Temperature:	Max 250
Highlight:	Electrostatic Powder Coating Line

Product Description

O- 448 steel door/fence/pipe electrostatic powder coating oven machine for powder curing

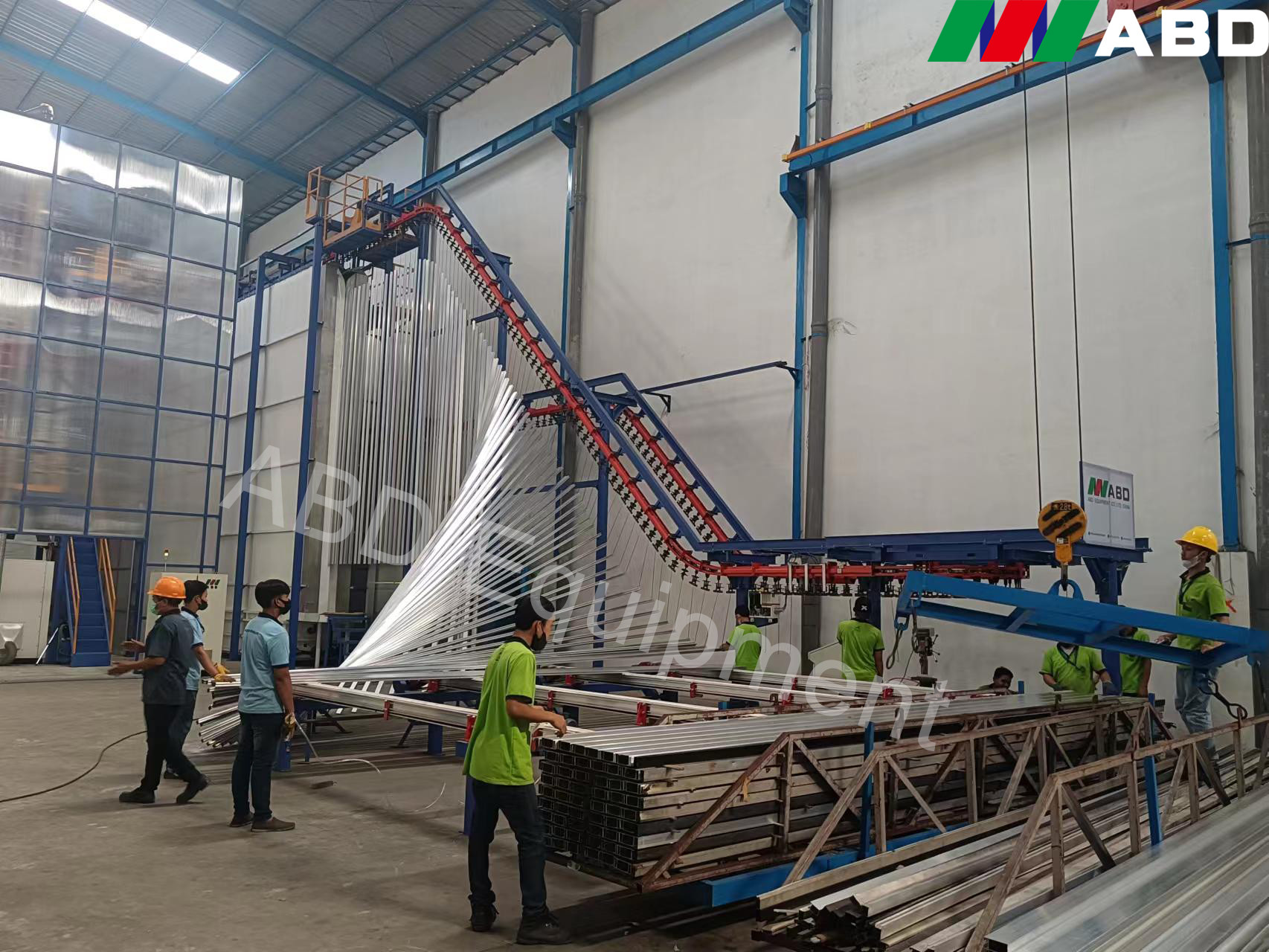

steel door/fence/pipe surface finish electrostatic powder coating line for powder curing 0

steel door/fence/pipe surface finish electrostatic powder coating line for powder curing 4

Exemplary Examples of powder coating oven

No.	Item	Description
1	Demension	External size: 6300mm(L)×3300mm(W)×3100mm(H);or as requirement Internal size: 6000mm(L)×3000mm(W)×2800mm(H)
2	Wall Panel	150mm thick heating-resisting rock wool steel board, sandwich: Outside panel is 0.5mm thick colorful steel skin boards, and Inside panel is 0.5mm thick galvanized sheet plate.
3	Entrance Door	W3000mm×H2800mm or as requirement; Handiwork metal plate 2-door; Be equipped doorknob, etc.
4	Ground Rail	High quality steel rack;
5	Circulation Fan	1 unit 4kw high temperature fan. Air flow capacity: 9000m³/h; Fan and burner box inner is 1.2mm thick stainless steel; Out is also 150mm thick rock wool panel to keep heat.
6	Heating System	1 set of Riello FS34 natural gas(LPG,diesel) burner, 340000KCal/h Max temp:220℃, heating time: 20-25min(180-220℃)
7	Motor Power	380V AC/3Ph/50Hz; or as requirement;
8	Electrical Control System	Baking, Indicator; Pre-set baking time; Power On/Off Control, Indicator; Emergency Stop
9	Working Temp.	200℃

Customization of powder coating oven

For customized design upon your request , please kindly let us know the detailed info :

1. Workpieces Max weight and Max size (length ,width and high) and picture.

2. The material of the workpiece.

3. The heating power: Liquefied Petroleum Gas, Liquefied natural gas, Diesel, Electric, Coal or

Biomass particles.

4. The local electricity conditions(V/PHASE/HZ)

FAQ

1.Installation?

Deliver with detailed specification of installation and operation

2.Payment terms?

T/T,30% for deposit and the balance 70% before loading into container.

3.About design?

Please let me know the details,for example:the size of the workpieces,meterial description,

output capacity,the size of the workshop,change colors situation,electricity types and other

Place of Origin:	Guangdong, China
Brand Name:	ABD powder coating line

Price:	Negotiate
Packaging Details:	standard package ,or as clients's want for powder coating oven
Supply Ability:	20 Set/Sets per Month
