Name: powder coating curing line with heating exchange box
Brand: Foshan ABD Equipment Co., Ltd.
Availability: InStock

Detail Information

Type:	Powder Coating Line	Condition:	New
Machine Type:	Powder Curing Oven, Plc Controller Programmable Logic Controller, Conveying Equipment, Drying Oven, Curing Oven, Coating Equipment	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Warranty Of Core Components:	1 Year
Core Components:	Motor	Coating:	Powder Coating
Voltage:	380V/220V	Warranty:	12 Months
Key Selling Points:	Easy To Operate	Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction Works
Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka,	Weight (KG):	5000
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Color:	Customized Color
Model:	As Required	Heating Energy:	LPG/Liquefied Natural Gas/Diesel/Electric/Coal
Heating System:	Riello Diesel Burner/gas Burner/electric Heating Tube	Equipment Name:	Powder Batch Curing Oven
Size:	Customized	Heating Temperature:	Max:250
Highlight:	heating exchange box curing line

Product Description

powder coating curing oven with heating exchange box

Item	Description
External Dimensions	600032003500mm
Internal Dimensions	575029003275mm
Wall Panel	150mm thick heat-resisting rock wool steel board,including: Outside panel is insulated galvanized sheet boards Inside panel is insulated galvanized sheet plate Keep heat, save energy and high curing efficient
Entrance Door	Entrance door,insulated heat-resisting 100mm rock wool steel board Handiwork metal plate 2-door for work pieces in and out. Be equipped doorknob
Air Duct	Air duct with insulation rock wool layer, preventing heat lost and saving energy
Heat Air Circulating Fan	Supply the enough air for the circulations of the oven to make sure the heat circulating and save energy.
Heating System	LPG/Diesel Heating System,Gas/Diesel Burner inside of the heating cabinet Riello Brand LPG/Diesel burner, stainless steel heating exchanger, argon arc welding; Temperature:200-220°C ,heating time: 25-30 min,
Control System	Control panel is outside of oven to control temp and other functions; Temperature alarm(With inductor in the oven) ,stop button, process setting system:could set baking time and temperature, when baking time arrive, stop automatically
Power	The power is customized, according to the customer's city power.
Certificate	CE, ISO9001
MOQ	1 set

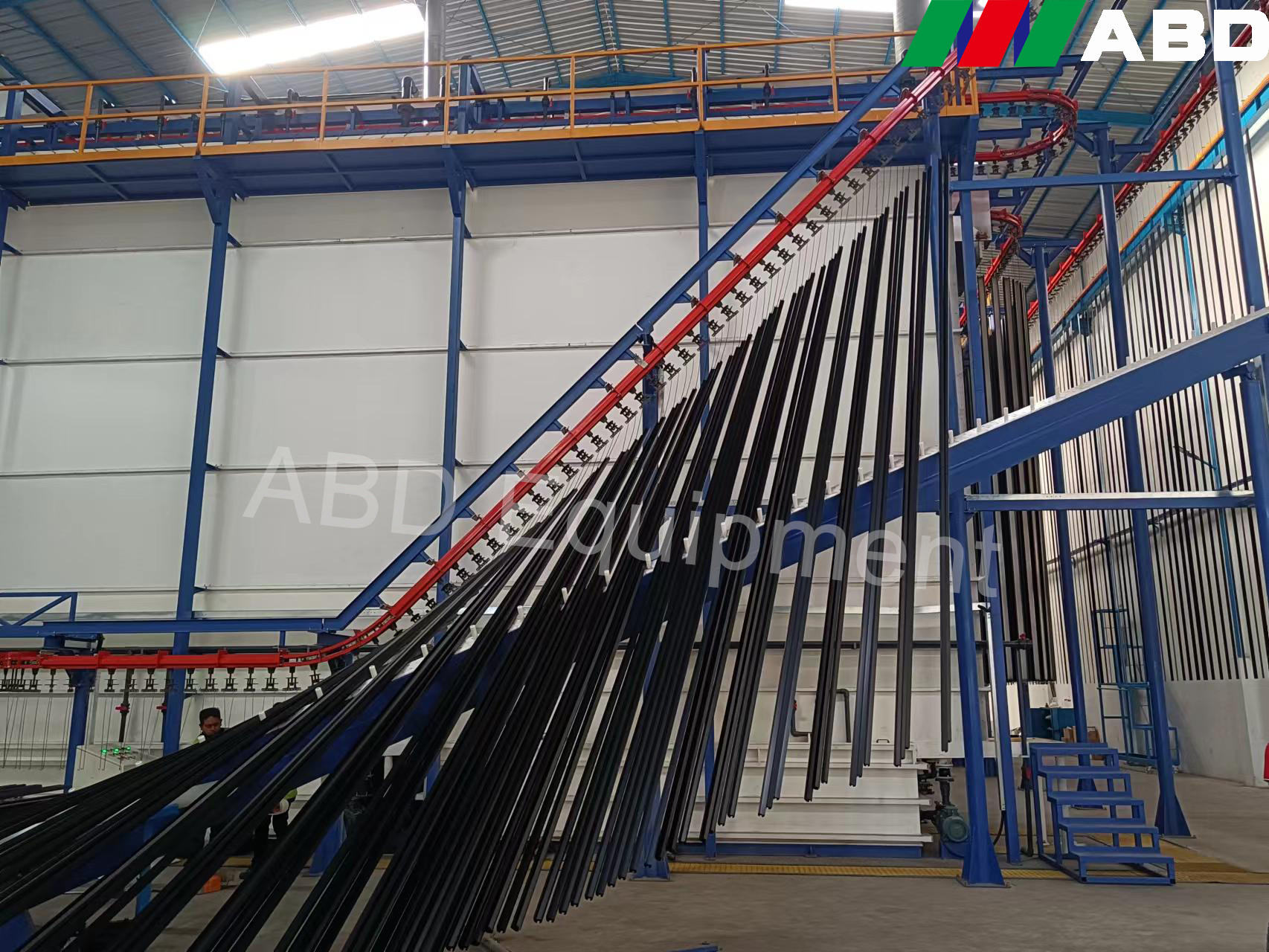

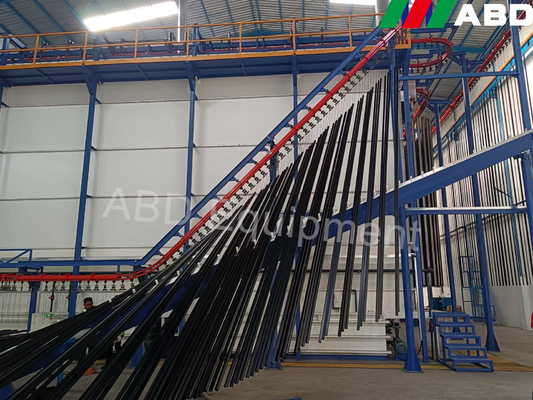

Detailed Images

Company Profile

Packing & Delivery

Packaging
Containers Needed	Our egineers will calculate how many containers will need according to the confirmed order.
Packaging Details	1. Plastic foam paper + hard papers covered to make sure the perfect conditions of the equipment during the delivery and shipping; 2. Every parts will be labeled with name, dimensions, number, etc for clients easier checks when receive the goods;

Place of Origin:	Guangdong, China
Brand Name:	ABD
Certification:	CE

Minimum Order Quantity:	1 set
Price:	Negotiate
Packaging Details:	pallet for powder coating oven or as clients's want
Supply Ability:	20 Set/Sets per Month

powder coating curing line with heating exchange box

heating exchange box curing line
