Detail Information

Type:	Coating Production Line	Substrate:	Steel
Condition:	New	Machine Type:	Powder Coating Oven, Drying Oven, Curing Oven, Coating Equipment
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product 2022	Warranty Of Core Components:	1 Year
Core Components:	Motor	Coating:	Powder Coating
Voltage:	220v 1PH/380v 3ph Or Customized	Power:	Multi Power
Dimension(LWH):	According To Your Needs	Warranty:	1 Year
Key Selling Points:	Easy To Operate	Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction Works
Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka,	Weight (KG):	3500
After-sales Service Provided:	Engineers Available To Service Overseas	Heating System:	Gas/electric/LPG/Diesel Etc
Temperature:	180-220℃	Wall Panel:	Rock Wool Steel Board,150 Mm
Control System:	Button Or PLC	Oven Type:	One Door, Two Doors(pass-type), "bridge" Type
Total Powder:	Various	Metal Car Rims Powder Coating Oven:	Iron Car Rims Powder Coating Oven
Iron Profile Powder Curing Oven:	Aluminium Powder Heating Oven	Car Powder Curing Furnace:	Metal Doors Powder Heating Machine
Highlight:	Aluminum Profile Powder Coating Line , Vertical Powder Coating Line

Product Description

powder Coating Paint Oven for Car Rim

Product Description

Inside Size(mm)	4500x3000x3000mm (LXWXH)
Outside size(mm)	4800x3300x3300mm (LXWXH)
Wall panel	Rock wool steel board,150 mm thick,
Wall panel	anti-flame and heat-insulation
Front door size	30003000mm(WH)
Fan	1 set 3kw high-temperatute fan,air flow capacity:3000m³/h
Heating system	1set of Riello G20 diesel burner
	stainless steel heat exchanger
	max temp:220 ℃, heating time: 20-25 min (180-220℃).
	Fan and burner box inner is 2 mm thick galvanized steel,interlayer 150mm thick rock wool,out is 1.2mm thick galvanized steel to keep heat
Control system	Temperature alarm(With inductor in the oven) ,stop button,process setting system:could set baking time and temperature,when baking time arrive,stop automaticly
Total power	3kw

Powder coating oven with ground track rail:

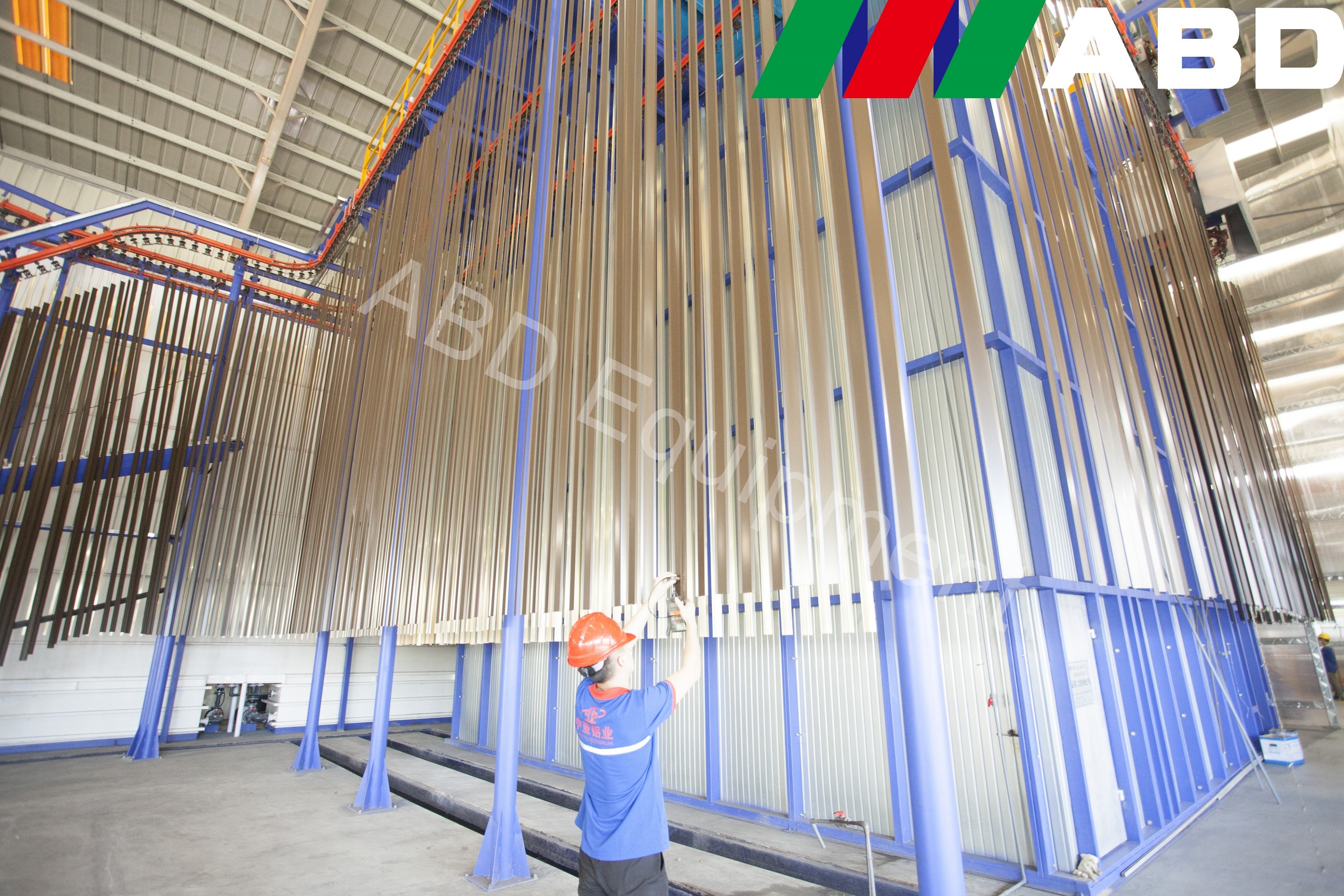

vertical powder Coating line for aluminum profile 0

Why choose us?

1.With more than 10-year experience for painting machine,

2.Export more than 100 places around world, Australia,Africa,Ansia,America,Europe etc.

3.Best post-sell service, offer oversea service for you to install for use.

useful screen printing uv curing oven

Tag:

Place of Origin:	Guangdong, China
Brand Name:	ABD

Price:	Negotiate
Packaging Details:	powder coating paint oven package: load in container or according to customer's needs
Supply Ability:	30 Set/Sets per Month useful screen printing uv curing oven

vertical powder Coating line for aluminum profile

Aluminum Profile Powder Coating Line
