Detail Information

Substrate:	Steel	Condition:	New
Machine Type:	Curing Oven, Drying Oven, Curing Oven, Coating Equipment	Video Outgoing-inspection:	Provided
Machinery Test Report:	Provided	Warranty Of Core Components:	1 Year
Core Components:	PLC, Motor	Coating:	Powder Coating
Voltage:	220v 1phrase/380v 3phrase	Power:	Multi Power
Warranty:	1 Year	Key Selling Points:	Easy To Operate
Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction Works	Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka,
Weight (KG):	6000	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Heating System:	Gas/electric/LPG/Diesel Etc	Temperature:	Generally Between 180-220℃, Can Be Set According To Customer Needs
Wall Panel:	Rock Wool Steel Board,150 Mm Thick,anti-flame And Heat-insulation	Control System:	Process Setting System:could Set Baking Temperature Etc
Oven Type:	One Door, Two Doors(pass-type) And "bridge" Type	Car Powder Curing Furnace:	Metal Doors Powder Heating Machine
Highlight:	hot sell powder coating line , Professional powder coating line

Product Description

Professional hot sell melting high-temperature powder coating ovens

Product Description

Inside Size(mm)	560022002100mm(LXWXH)
Outside size(mm)	590028002700mm(LXWXH)
Wall panel	Rock wool steel board,150 mm thick,
Wall panel	anti-flame and heat-insulation
Fan	1 set 5.5 kw high-temperatute fan,air flow capacity:9000m³/h
Fan	With air duct inner the oven,made of 2mm galvanized sheet
Heating system	3kw*26units of stainless steel heating pipe,cover with 2.0mm thick galvanized steel,max temp:220 ℃, heating time: 20-25 min (180-220℃)
Control system	Temperature alarm(With inductor in the oven) ,stop button,process setting system:could set baking time and temperature,when baking time arrive,stop automaticly
Total power	83.5kw

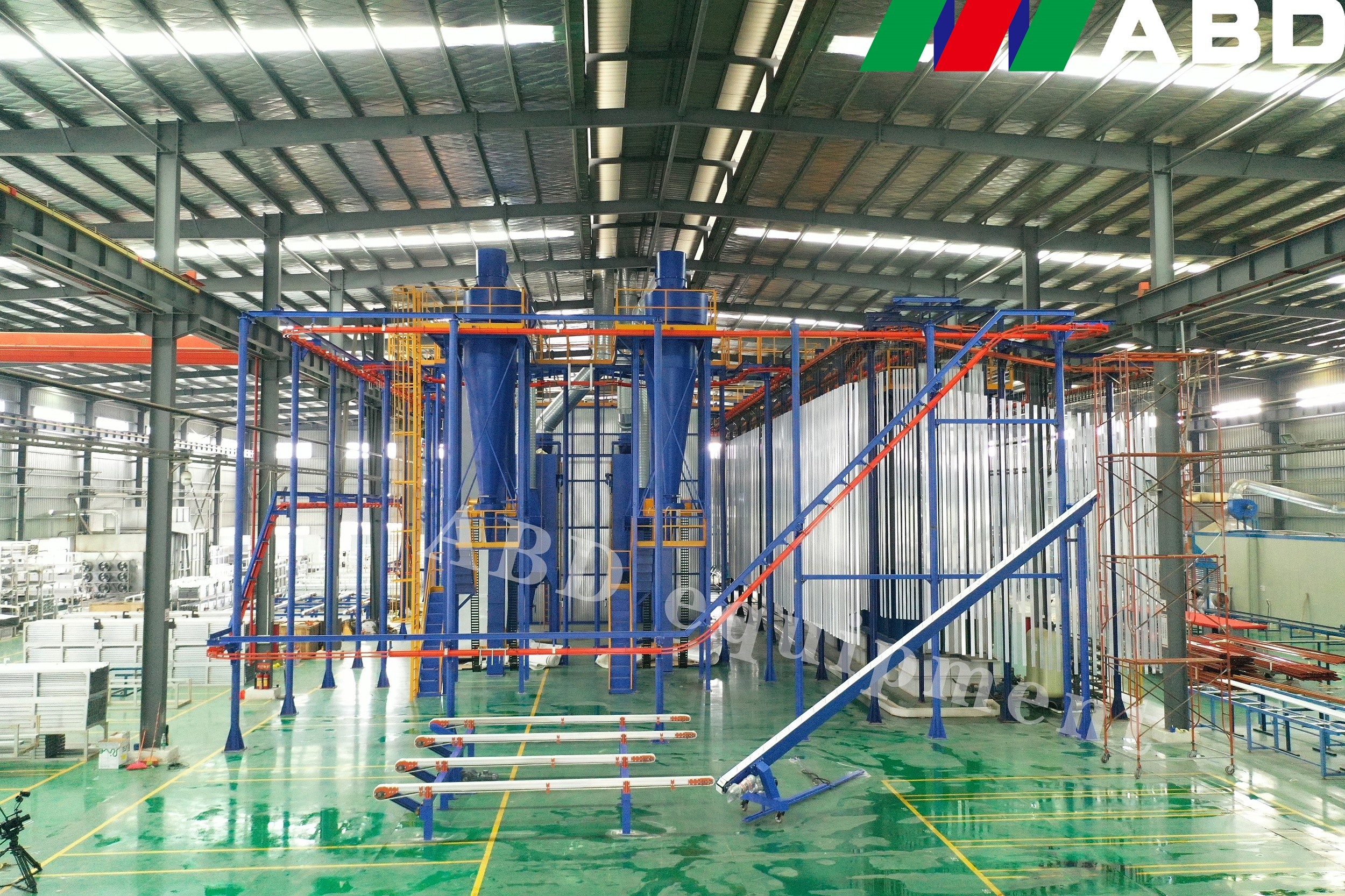

Powder coating oven with hanging rail:

Professional hot sell powder coating line 0

Powder coating oven components:

Professional hot sell powder coating line 1

Place of Origin:	Guangdong, China
Brand Name:	ABD

Price:	Negotiate
Packaging Details:	paper box, plastic film wrapping, galvanized pipe frame etc.
Supply Ability:	30 Set/Sets per Month gold melting high-temperature powder coating ovens
