Detail Information

Substrate:	Steel	Machine Type:	Curing Oven, Plc Controller Programmable Logic Controller, Conveying Equipment, Drying Oven, Curing Oven, Coating Equipment
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Hot Product 2022	Voltage:	220v 1phrase/380v 3phrase
Power:	Multi Power	Dimension(LWH):	According To Your Needs
Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction Works	Showroom Location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka,
After-sales Service Provided:	Engineers Available To Service Machinery Overseas	Heating System:	Gas/electric/LPG/Diesel Etc
Temperature:	Generally Between 180-220℃, Can Be Set According To Customer Needs	Control System:	Process Setting System:could Set Baking Temperature Etc
Oven Type:	One Door, Two Doors(pass-type) And "bridge" Type	Total Powder:	Various According To Different Heating Systems
Iron Profile Powder Curing Oven:	Aluminium Powder Heating Oven
Highlight:	China supplier curing oven , manufacturer curing oven

Product Description

China supplier manufacturer curing oven

Product Description

Powder coating oven
Outside Size	3500 x 2700 x 3000mm(LXWXH)
Inside Size	3200x 2400 x 2700mm(LXWXH);
Wall panel	Rock wool steel board,150 mm thick,anti-flame and heat-insulation
Heating system OPTION 1	1set of Riello FS20 natural gas burner,200000Kcal/h
	stainless steel heat exchanger,max temp:220 ℃, heating time: 20-25 min (180-220℃).
	Circulation fans:1 set 3.0kw high-temperatute resisting fan,air flow capacity:3000m³/h.Fan and burner box inner is 2 mm thick galvanized steel,interlayer 150mm thick rock wool,out is 1.2mm thick galvanized steel to keep heat
Control system	Temperature alarm(With inductor in the oven) ,stop button,process setting system:could set baking time and temperature,when baking time arrive,stop automaticly
Total power	3kw

Powder coating oven

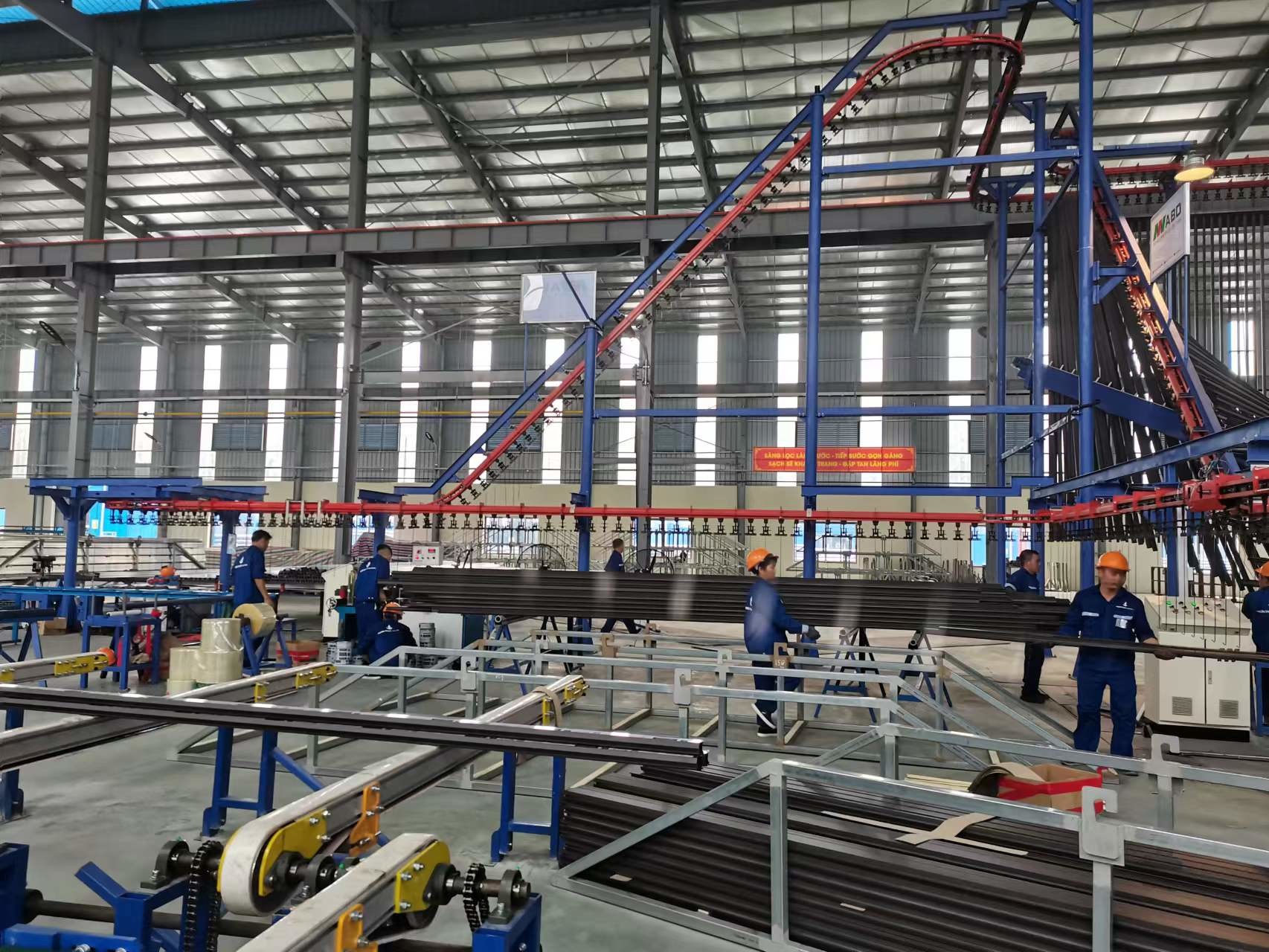

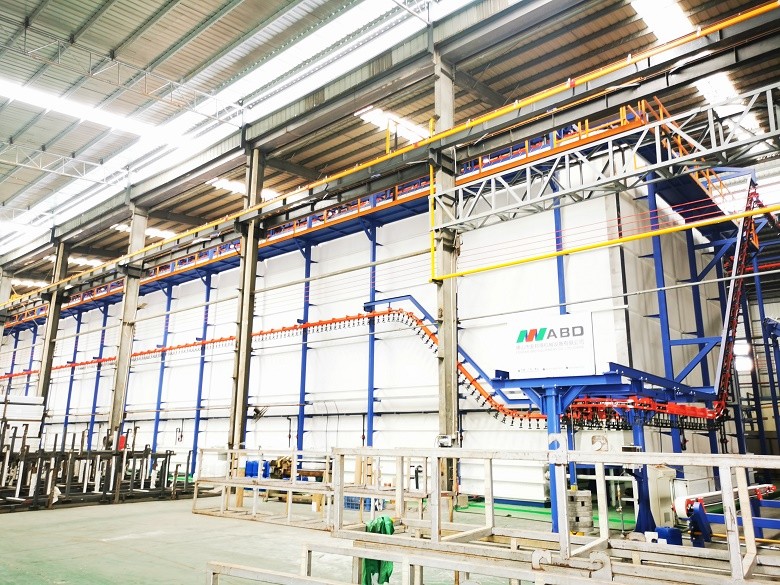

Powder coating oven with track rail:

China supplier manufacturer curing oven 0

Powder coating oven components:

China supplier manufacturer curing oven 1

Place of Origin:	Guangdong, China
Brand Name:	ABD

Price:	Negotiate
Packaging Details:	curing oven package: load in container or according to customer's needs
Supply Ability:	30 Set/Sets per Month fiber optical patch cord curing oven

China supplier manufacturer curing oven

China supplier curing oven
