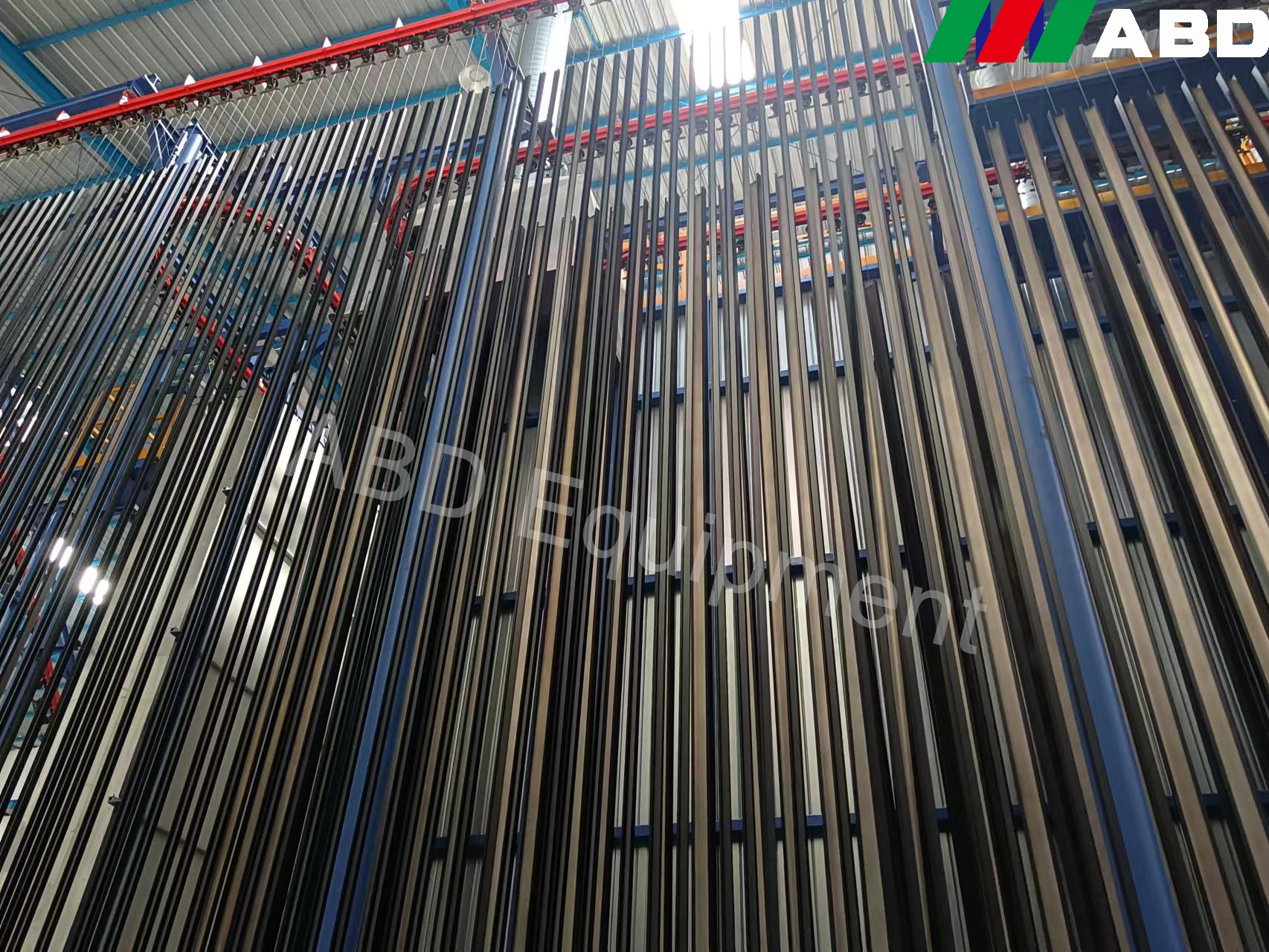

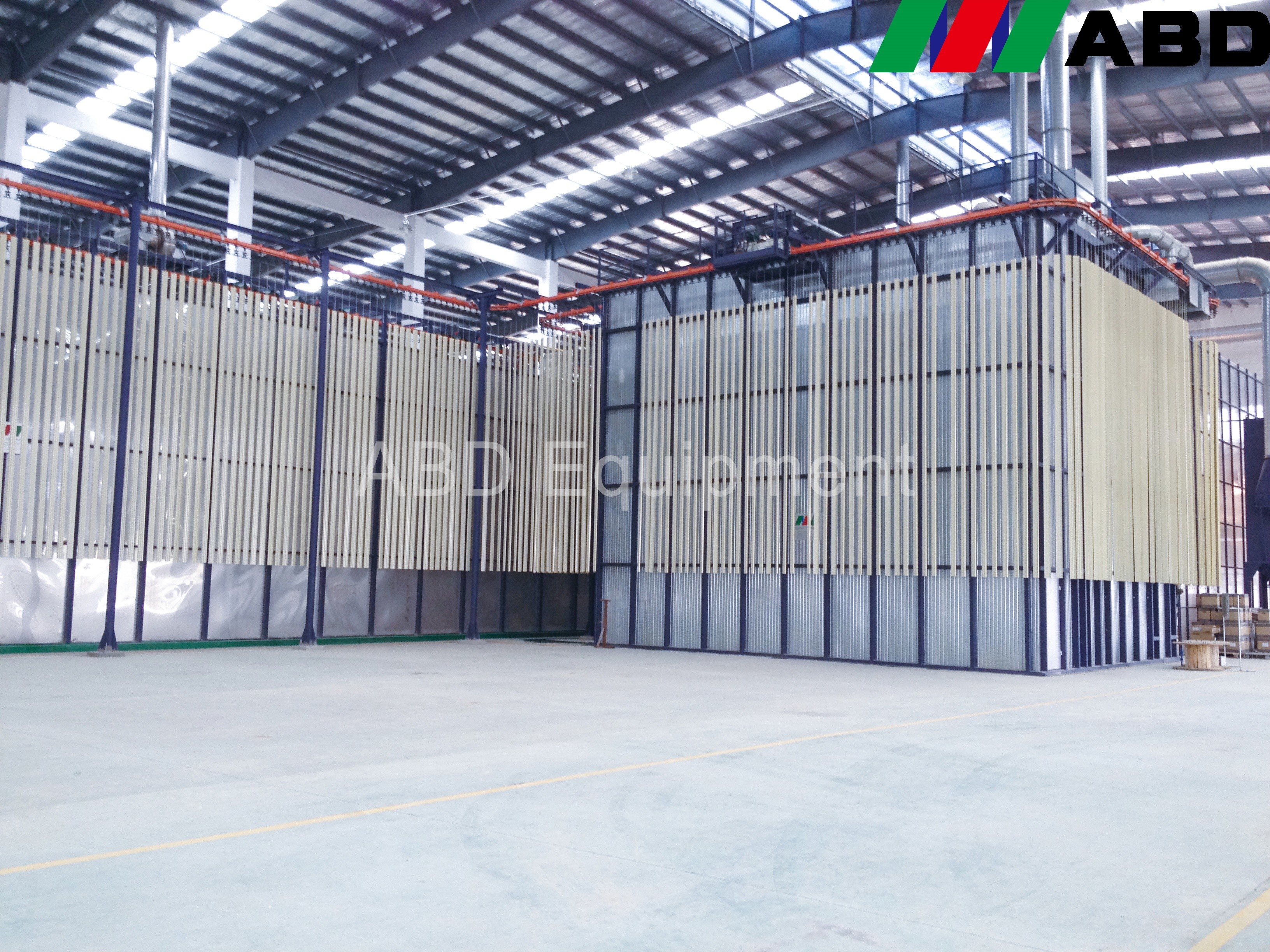

This proposal is designed for aluminum profiles vertical powder coating line—One Booth

1,Design data
1)Coating Material : Aluminum Profile

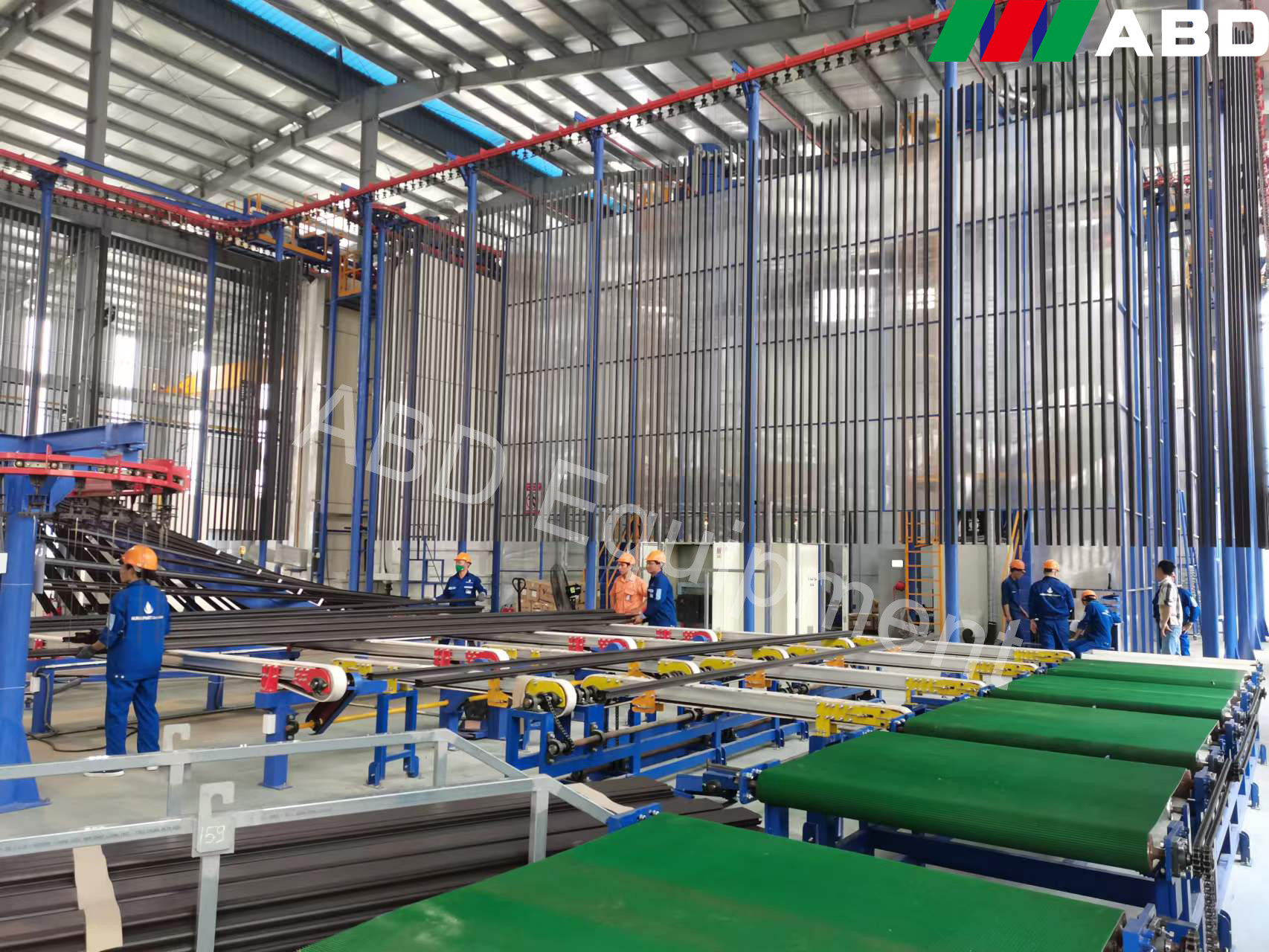

2)Technical Description:Loading ,pre-treatment ,drying , powder coating, Curing ,unloading .
3)Coating profile specifications:
      a) Max size of the profile : 100mm×200mm×L7000mm
      b) Max Weight of the profile: 30KG
      c.)Standard weight : 3.5kg
      d) Standard surface area of the profile : 400m2／T

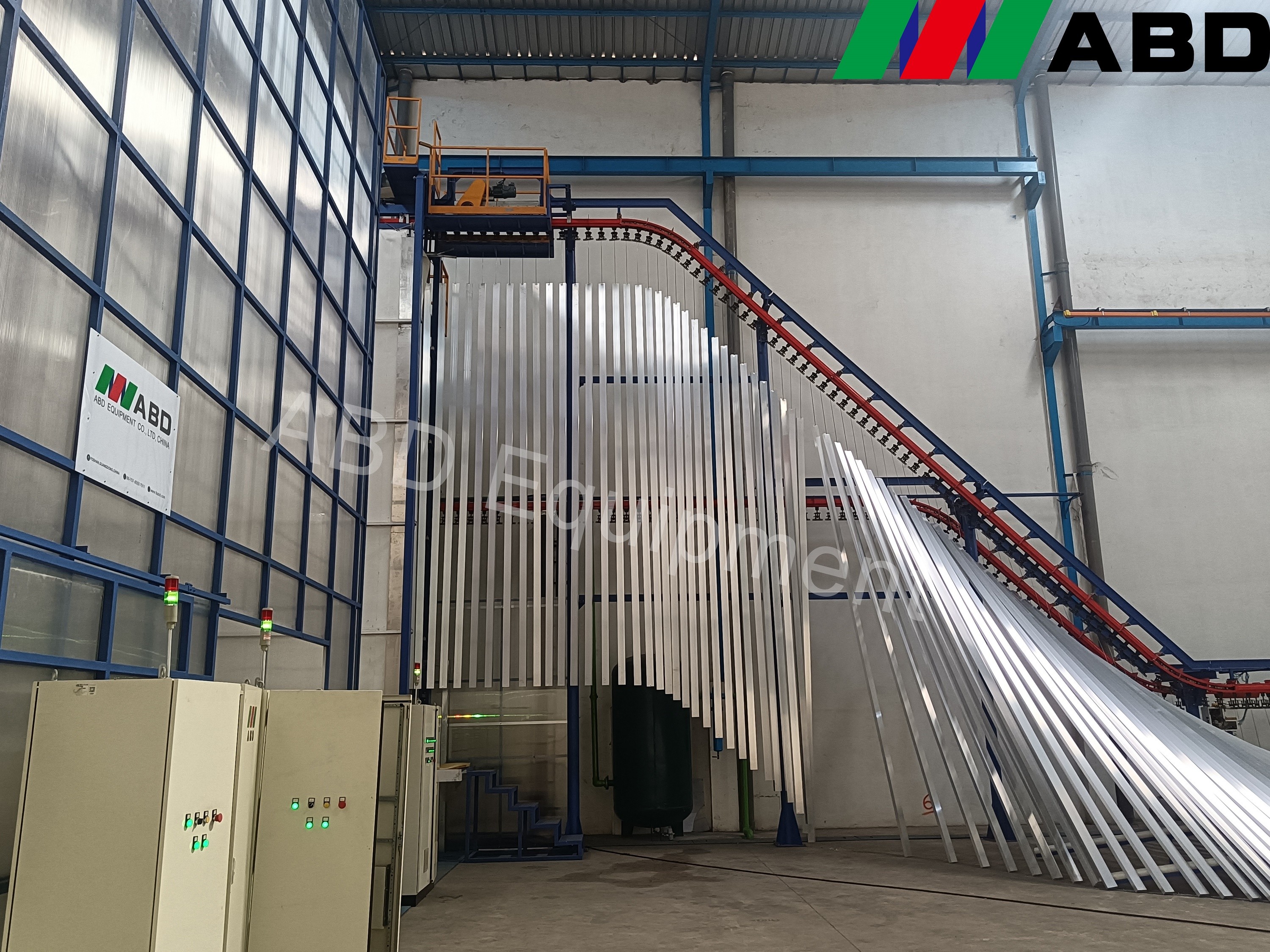

      e)Conveyor speed 1200mm/min (500mm/min ----- 20000mm/min adjustable )

2,Energy supply
1)Power supply
      a)  Single-phase voltage:220V+10%
      b)  Three-phase voltage:380V+10%
      c)  Frequency:50Hz
      d)  Equipment group line and zero line
      e)  Natural gas

3,Compressed air
 1)Pressure : 7.0bar
 2)Max steam flux: 1.3g/nm3
 3)Max oil content: 0.01ppm
 4)Max Flux of the compressed air: 8m3/min

4,Industrial water required
 1)Pressure : 3+0.2bar
 2)Flux; 5m³/h

5,Pure water
1)Conductivity : 10us/cm
2)Flux; 4m³/h

6,Powder
1)Powder characteristic : LEL≥40g/Nm³

7,Space between material hanging : 66mm,100mm,133mm,150mm,200mm

8,Production Capacity
1)Conveying chain speed: 1.2m/minute
2)Total coating pcs per hour: 1200mm/minute÷150mm/pcs×60minutes=480pcs/hr
3)Total weight per hour:480pcs×3.5kg/pcs =1.68tons/hr
4)Daily capacitly: 1.68tons x 16 hrs/day = 26.8 tons/day
5)Monthly Capacity: 26.8 tons/day × 25 days/month= 670 tons/month
9,Process

Oridinary powder coating process
