industrial commercial tunnel baking oven
| Inside Size(mm) |
10000x2500x3000mm (LXWXH) |
| Outside size(mm) |
10300x2800x3300mm (LXWXH) |
| Wall panel |
Rock wool steel board,150 mm thick, |
| anti-flame and heat-insulation |
| Door |
Pass-type doors,2 sets |
| Fan |
1 set 5.5 kw high-temperatute fan,air flow capacity:9000m3/h |
| Fan and burner box inner is 1.2 mm thick steel,out is also 150mm thick rock wool panel to keep heat |
| Heating system |
1set of Riello RG5S natural gas burner,250000KCal/h,gas operation pressure:5KPa-8KPa,Gas consume for one hour:20-30m³/h |
| max temp:250 ℃, heating time: 20-25 min (180-250℃) |
| with heat exchanger,stainless steel chimney |
| Control system |
Temperature alarm(With inductor in the oven) ,stop button,process setting system:could set baking time and temperature,when baking time arrive,stop automaticly,wire color:yellow/green for earth and 3 phases should be red,light blue and white |
| Total power |
5.5kw |

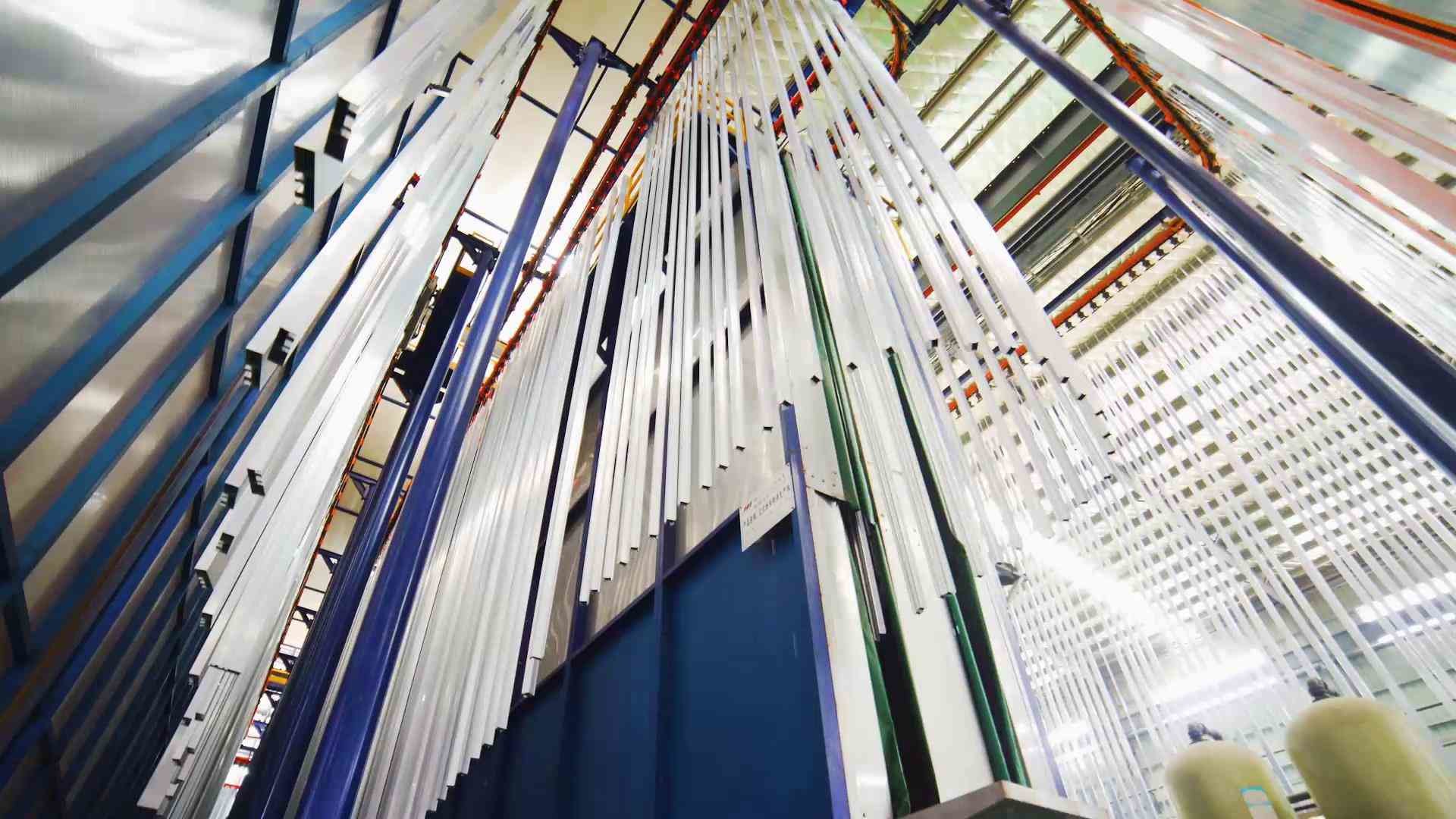

Powder coating oven with hanging rail:
First Pre-sale services:
1). Select equipment model;
2). Design and manufacture according to client’s special requirement.
3). Train technical personal for clients.
Second Services during the sale:
1). Pre-check and accept products ahead of delivery.
2). Help clients to draft solving plans.
Third After-sale service:
1). Assist clients to prepare for the first construction scheme.
2). Install and debug the equipment.
3). Train the first-line operators.
4). Examine the equipment.
5). Take initiative to eliminate the trouble rapidly.
6). Provide perfect service.
7). Provide technical exchanging
Fourth Overseas Installiation Service
If the customers need overseas installiation service, we can send professional engineer to install for customers in your workshops but need to charge the cost.
Customization of powder coating Equipment
Before customized design for your painting line, there are some points needing your confirmation:
1). What's the size (L*W*H) of your workshop for this painting line?
2). What's the shape, size(L*W*H), weight of parts to be painted? Could you please send me some pictures of the parts?
3). How many parts to be painted in a working day (8hours)?
4). Is there any oil or rust on the surface of the parts? If yes, how about the amount?
5). How many times do you want to paint such parts?
6). What's your desired heating source for baking the paint, diesel, natural gas or electric?
7). How about the electric voltage and frequency in your palce?
