Detail Information

Type:	Coating Production Line	Substrate:	Steel
Condition:	New	Machine Type:	Powder Curing Oven
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	New Product 2020	Warranty Of Core Components:	1 Year
Core Components:	PLC, Motor	Coating:	Powder Coating
Voltage:	220v 1phrase/380v 3phrase	Power:	Multi Power
Dimension(LWH):	According To Your Needs	Warranty:	1 Year
Key Selling Points:	Easy To Operate	Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction Works
Showroom Location:	None	After-sales Service Provided:	Engineers Available To Service Machinery Overseas, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support
Heating System:	Gas/electric/LPG/Diesel Etc	Temperature:	Generally Between 180-220℃, Can Be Set According To Customer Needs
Wall Panel:	Rock Wool Steel Board,150 Mm Thick,anti-flame And Heat-insulation	Control System:	Process Setting System:could Set Baking Temperature Etc
Oven Type:	One Door, Two Doors(pass-type) And "bridge" Type	Total Powder:	Various According To Different Heating Systems
Metal Car Rims Powder Coating Oven:	Iron Car Rims Powder Coating Oven	Iron Profile Powder Curing Oven:	Aluminium Powder Heating Oven
Car Powder Curing Furnace:	Metal Doors Powder Heating Machine	After Warranty Service:	Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location:	None	Weight:	Various
Highlight:	New Coming uv curing oven , Latest Designs uv curing oven , Latest designs uv curing oven

Product Description

Latest designs new coming uv curing oven

Inside Size(mm)	6000x3000x2800mm (LXWXH)
Outside size(mm)	6300x3300x3500mm (LXWXH)
Wall panel	Rock wool steel board,150 mm thick,
Wall panel	anti-flame and heat-insulation
Pass type doors	2 sets ,30002800m(WH)
Fan	1 set 5.5 kw high-temperatute fan,air flow capacity:9000m³/h
Heating system	1set of Riello FS34 natural gas burner,340000KCal/h
	stainless steel heat exchanger
	max temp:250 ℃, heating time: 20-25 min (180-250℃).
	Fan and burner box inner is 2 mm thick galvanized steel,interlayer 150mm thick rock wool,out is 1.2mm thick galvanized steel to keep heat
Control system	Temperature alarm(With inductor in the oven) ,stop button,process setting system:could set baking time and temperature,when baking time arrive,stop automaticly
Total power	5.5kw

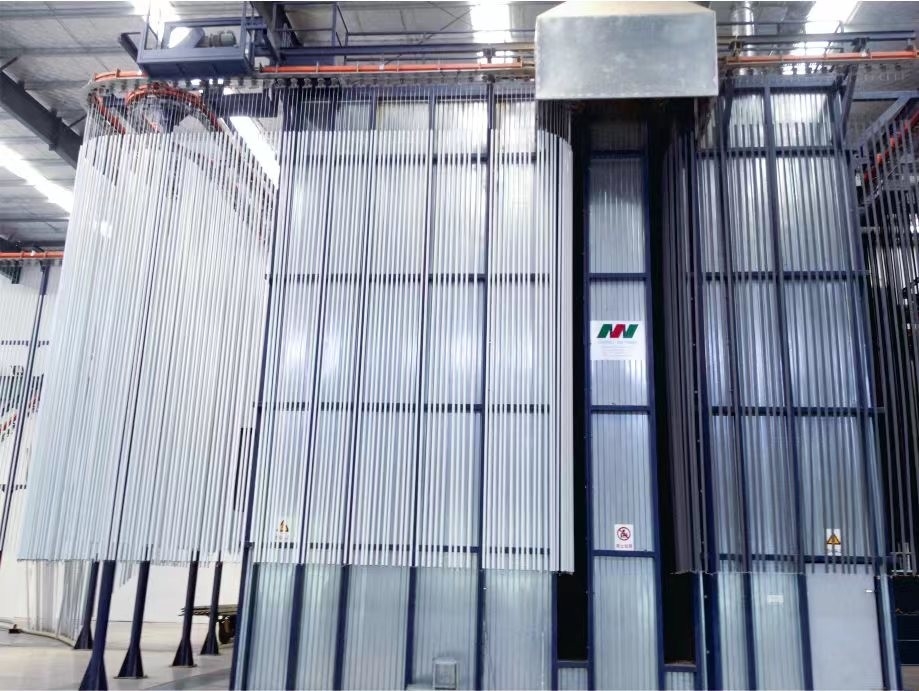

Powder coating oven

Powder coating oven with hanging rail:

Powder coating oven components:

Product Processing

Why choose us?

1.With more than 10-year experience for painting machine,

2.Export more than 100 places around world, Australia,Africa,Ansia,America,Europe etc.

3.Best post-sell service, offer oversea service for you to install for use.

4. 24hours online service

uv curing oven

Tag:

Place of Origin:	Guangdong, China
Brand Name:	ABD
Certification:	CE/ISO9001

Price:	Negotiate
Packaging Details:	uv curing oven package: load in container or according to customer's needs
Supply Ability:	30 Set/Sets per Month uv jeans pants jackets curing oven
